GL Swing Indicator
A TradingView overlay for Gann swing structure, pivot levels, fair value gaps, and chart pattern detection.
Gann swings
Swing highs and lows from bar classification.
Pivot levels
Pivot levels, states, and 50% mids.
Fair value gaps
3-bar wick imbalances with touch, fill, and inverse (IFVG) tracking.
Chart patterns
Rectangles and triangles from pivots.
Pine Screener
Multi-symbol pattern and FVG scanning.
Up
Higher high and higher low than the previous bar.
Down
Lower high and lower low than the previous bar.
Inside
High and low contained within the previous bar.
Outside
Both a higher high and a lower low than the previous bar.
- 1 bar
- Most sensitive. Catches every minor swing (default).
- 2 bar
- Filters noise for intermediate swings.
- 3 bar
- Most filtered. Only major swings.
Display swings from a higher timeframe on your current chart, for example weekly swings on a daily chart.
- Real-time HTF
- Shows the developing higher-timeframe swing for live trading.
- Bar-close HTF
- Waits for the HTF bar to close. Better for backtesting without repaint.
Level tracking
Every confirmed pivot creates a horizontal level. Price interaction updates its state over time:
- Untouched levels stay untested
- Wick touches mark a level as tested
- Closes through a level flip it to support or resistance
Level states
Price has not touched the level yet. Highest-probability zone. Expect a reaction on first touch.
Price touched the level but has not closed through. Some liquidity absorbed; weaker than untested.
Price closed above a previous swing high. The level flipped from resistance to support.
Price closed below a previous swing low. The level flipped from support to resistance.
Dotted horizontal lines at the midpoint of recent swing legs. Price often retraces to the 50% level before continuing.
Useful for
- Pullback and retracement targets in a trend
- Continuation entry zones
- Confluence with pivot levels for stronger reactions
A fair value gap is a 3-candle pattern: oldest candle on the left, displacement candle in the middle, newest candle on the right. The gap forms when the wicks of the oldest and newest candles do not overlap. Detection uses the same Swing Timeframe pipeline as swings and levels. For example, 4H gaps on a 15m chart when Swing Timeframe is 240.
Regular FVGs
The newest candle's low sits above the oldest candle's high. The gap is the empty zone between their wicks.
The newest candle's high sits below the oldest candle's low. The gap is the empty zone between their wicks.
Price traded through the far edge. Box stops extending and turns gray with a dotted border.
Inverse FVGs (IFVG)
When price closes through the far edge of a gap before a full wick fill, polarity inverts. The original zone is retained but redrawn with dashed borders and CE lines. Inversion is checked on confirmed swing-TF bar closes.
A bearish gap whose swing-TF close prints above the top edge. The zone flips polarity and is expected to act as support.
A bullish gap whose swing-TF close prints below the bottom edge. The zone flips polarity and is expected to act as resistance.
Gap lifecycle
- Open
- Gap formed but price has not revisited the zone yet.
- Touched
- Swing-TF wick entered the gap. Liquidity is being tested.
- Filled
- Wick traded through the far edge. Gap is fully mitigated.
- Inverted
- Swing-TF close broke through the far edge before a full wick fill. Gap polarity flips into an IFVG with dashed box and CE styling.
FVG display filter
Detection and fill tracking always run. FVG Display filters regular FVG boxes only. IFVG boxes are controlled separately via Detect Bullish/Bearish IFVG and Show IFVG Boxes:
- All
- Every stored regular FVG: open, touched, and filled.
- Untouched Only
- Open FVGs only. Default. Keeps the chart focused on fresh zones.
- Unfilled Only
- Open and touched FVGs. Hides fully filled boxes.
- IFVG Only
- Hides regular FVG boxes. Pair with Show IFVG Boxes to focus on inverted zones.
When enabled
- Dotted FVG boxes from the oldest candle through the current bar (or fill bar)
- Dashed IFVG boxes when polarity flips on a swing-TF close through the far edge
- Optional CE line at the 50% midpoint: dotted for FVGs, dashed for IFVGs
- Wick or body gap source, ATR-based minimum gap size, and nested-gap dedupe
- Alerts for FVG formed, touched, and filled
- Four Pine Screener columns: FVG Active, FVG CE Distance %, IFVG Active, IFVG CE Distance %

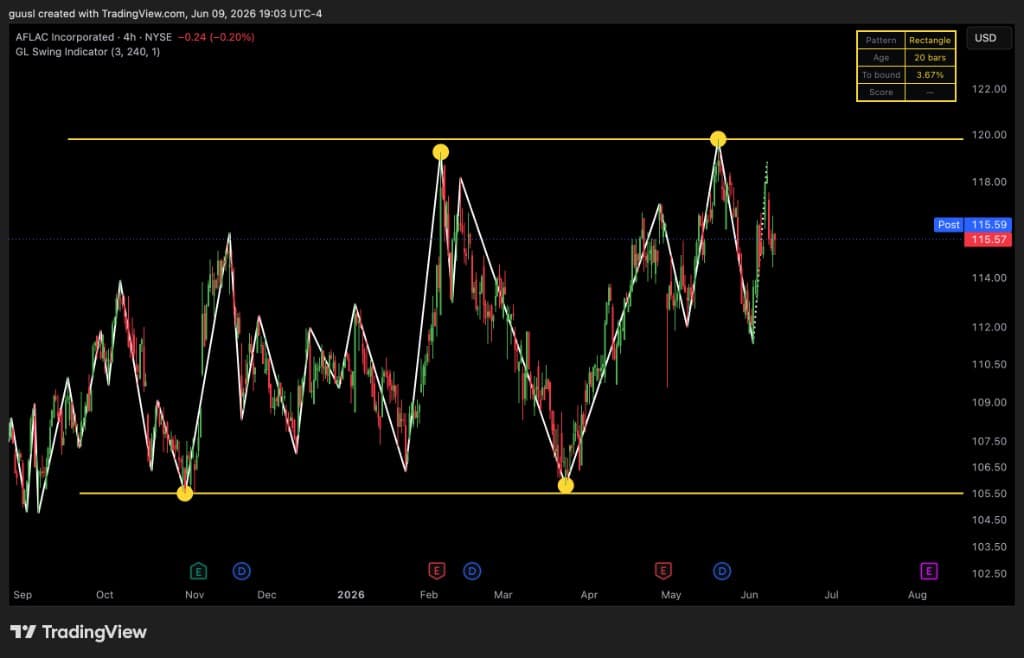

Flat upper and lower boundaries for range and consolidation.

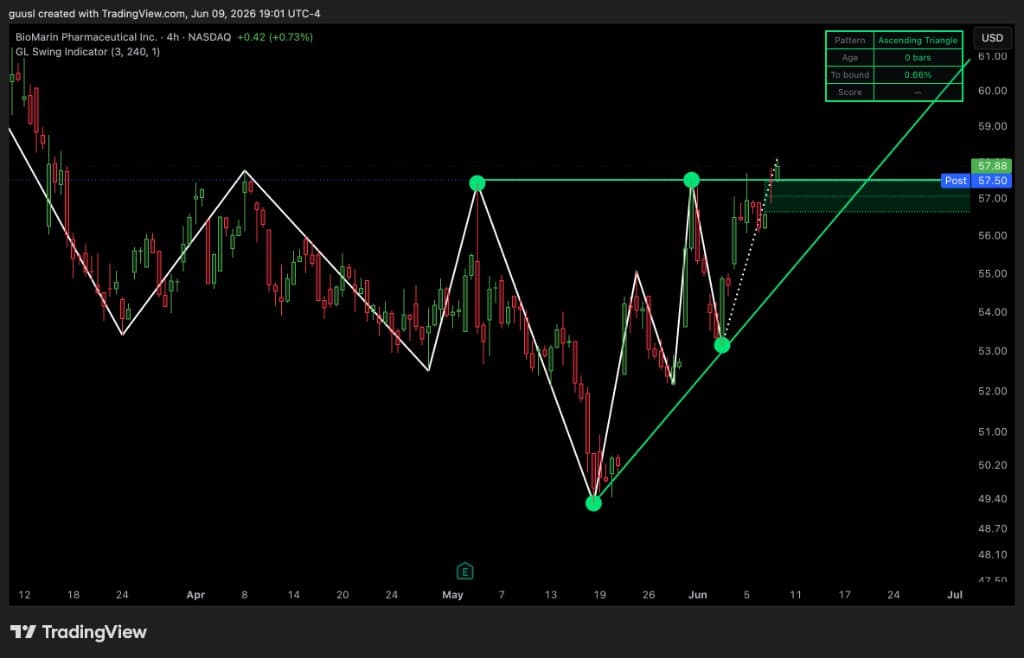

Flat resistance with rising support. Bullish compression.

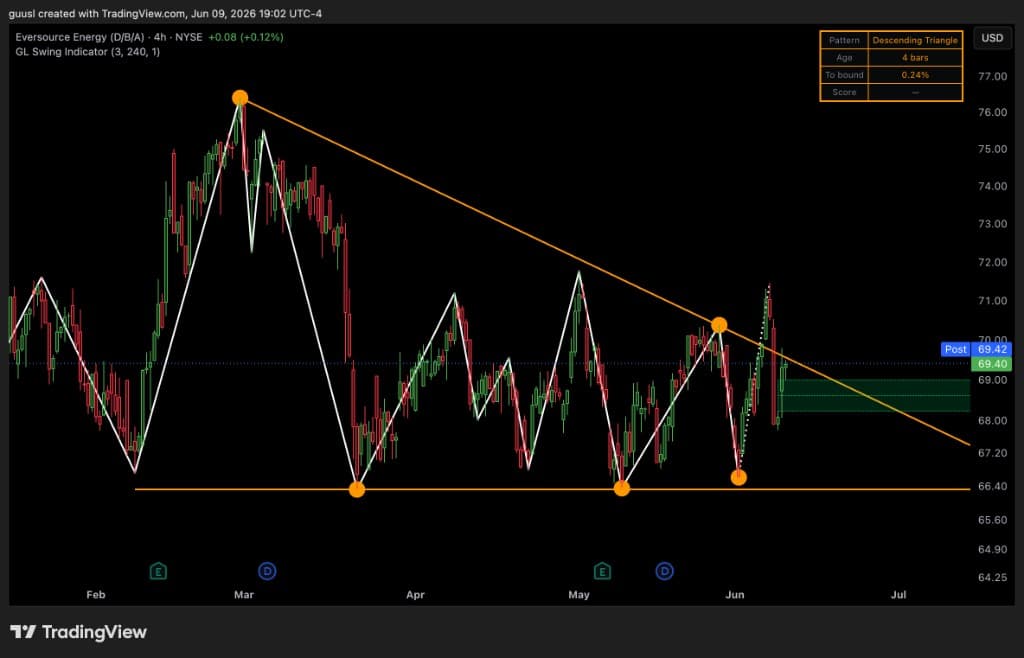

Falling resistance with flat support. Bearish compression.
Patterns that fail validation rules. Shown at reduced opacity until invalidated.
When enabled
- Boundary lines with toucher markers on active patterns
- Top-right HUD with pattern type, age, and distance to nearest boundary
- Alerts for pattern formed and invalidated
- Four Pine Screener columns for multi-symbol scanning
GL Swing exposes eight screener columns: four for chart patterns and four for fair value gaps (including IFVG). Enable the relevant feature groups in indicator settings. Run separate scans per timeframe and swing bar count; those settings apply globally to each screener pass.
Quick setup
- Open Pine Screener with GL Swing Indicator on your symbol list
- Set the chart timeframe to the TF you trade (e.g. Daily, 4H)
- Match Swing Bar Count and Swing Timeframe in Gann Swing Line settings
- Enable Chart Patterns and/or Fair Value Gaps depending on your scan
- Filter Pattern Active = 1, FVG Active = 1, or IFVG Active = 1, then sort by distance columns
TradingView plan required
Pine Screener is a TradingView feature, not part of the indicator script itself. Per TradingView's requirements, it is only available on Premium and above. Lower tiers can still use the indicator on individual charts.
| Plan | Pine Screener |
|---|---|
| Basic | Not included |
| Essential | Not included |
| Plus | Not included |
| Premium | Included |
| Ultimate | Included |
Plan names and pricing can change. Confirm on TradingView pricing.
Screener columns
- Pattern Active
- 0 = none, 1 = valid active pattern
- Pattern Type
- 0 = none, 1 = rectangle, 2 = ascending, 3 = descending
- Pattern Age Bars
- Bars since the pattern formed
- Pattern Nearest Boundary %
- Distance from price to the nearest boundary line
- FVG Active
- 0 = none, 1 = at least one non-filled gap exists
- FVG CE Distance %
- Distance from close to the nearest active gap midpoint (CE)
- IFVG Active
- 0 = none, 1 = at least one inverted gap exists
- IFVG CE Distance %
- Distance from close to the nearest inverted gap midpoint (CE)
GL Swing Indicator is published as an invite-only script on TradingView. DM guusl on TradingView to request access. Once granted, it appears under Invite-Only Scripts in your indicator menu.
- Open the script page and request access
- Add the indicator to any chart and market
- Start with 1-bar swing mode and enable levels to see pivot lines and 50% mids
- Enable fair value gaps for 3-bar imbalance boxes and CE midpoint lines
- Turn on chart patterns when you want rectangle/triangle detection or pattern screener columns
The indicator is in active development. DM on TradingView with bugs, feature requests, or feedback from live trading.
